CNL S 100 1000MM H310 DN/OD 110 F900 W/GR PAS CAST IRON

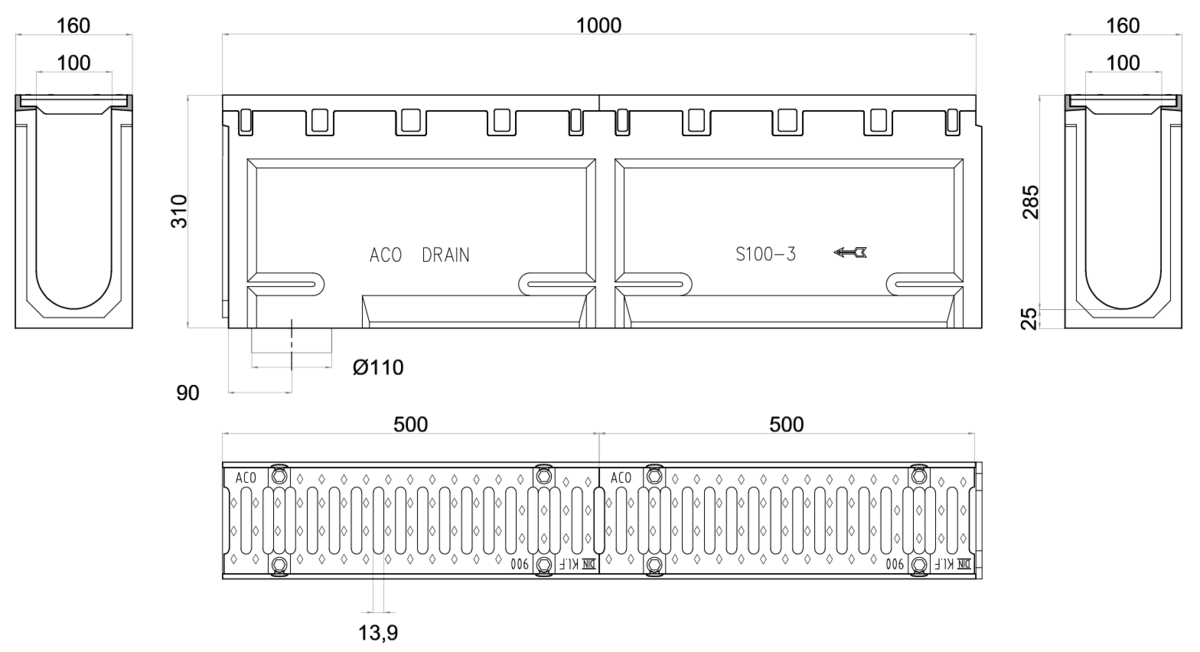

Draianage channel ACO S 100 H310 of polymer concrete, with grate type slotted of cast iron of load class F900 according to EN1433. With SI fixing system 8 bichromated screws on cast steel frame. With breakable pre-mark for vertical outlet connection DN/OD 110. With an inner section of 260 cm² and U-shaped cross-section. Grate absorption area of ​​322 cm²/m. Total length 1000 mm, outer height 310 mm and outer width 160 mm. Nominal inner width 100 mm. Weight: 47,3 kg.
Item:00001253
