CNL S 100 1000MM H190 DN/OD 110 F900 W/GR PAS CAST IRON

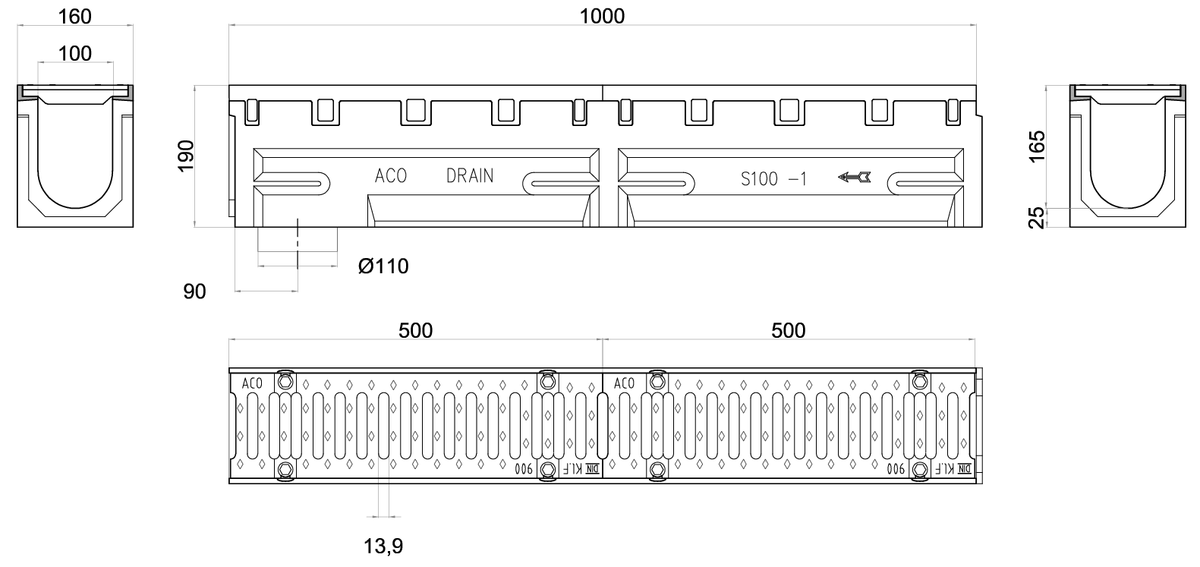

Draianage channel ACO S 100 H190 of polymer concrete, with grate type slotted of cast iron of load class F900 according to EN1433. With SI fixing system 8 bichromated screws on cast steel frame. With breakable pre-mark for vertical outlet connection DN/OD 110. With an inner section of 140 cm² and U-shaped cross-section. Grate absorption area of ​​322 cm²/m. Total length 1000 mm, outer height 190 mm and outer width 160 mm. Nominal inner width 100 mm. Weight: 39,2 kg.
Item:00001251
